Motivation
The Compute interaction functionality tool determines the correct sign of
the interactions in a LRG according to the logical rules defined for each node.
These rules, are used to compute the conditions for which a given interaction
has a dual, positive, negative or no effect.
Usage
The Compute interaction functionality entry on the Tools menu opens
the interaction functionality dialog.
This dialog first provides the option to select a perturbation to be applied
to the model before computing the interaction functionality, and it is divided
into three main sections:
- The perturbation selection, where the user can select (and define) perturbations.
- The
save reportbutton, where the user can export a summary table of all the conditions of each interaction into a XHTML file, to be visualised in a browser. - The execution options, where the user can run the computation and visualise the colors computed by the method or restore the colors of the original graph.
Example of interaction functionality analysis

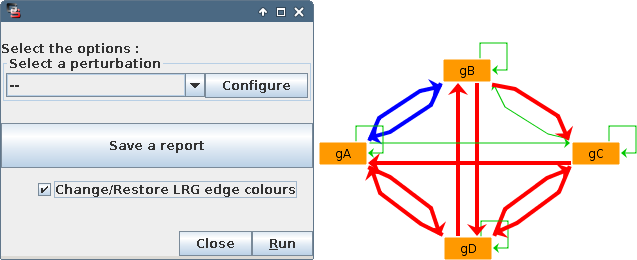

Left: The interaction functionality dialog box. Right: The logical regulatory graph, where the sign of the interactions are highlighted.
After running the tool, the logical regulatory graph interactions will change colour depending on their function. Their colour code representation will be: green, for interactions having an activatory effect; red, for interactions with an inhibitory effect; blue, for interactions having a dual effect; and black, for non-functional interactions. Additionally, if the user correctly (incorrectly) defined the sign of the interaction, this will be represented in normal (increased) thickness.
Report
The interaction functionality report is saved to a XHTML file which contains:
- A summary table, where for every interaction, it shows the source and target node, the user defined sign and the computed sign.
- A detailed table, where for every interaction, and for all the valuations of the regulators of the target node, it shows the cases for which the specific interaction is functional.
Example of an functionality context of an interaction
For all the valuations of all regulators of target node gB, the cases for which the interaction gA -> gB is functional are shown.
Availability
This feature was implemented in GINsim 3.0.
